The KTN home air conditioning compressor, constructed with a 3.0mm metal material for a durable body, supports 208-230V/60Hz voltage and frequency along with R22 refrigerant. It boasts a powerful cooling capacity of 18,584BTU and a high 3.1 COP energy efficiency ratio, featuring a brand logo presented via heat-transfer printing technology to balance performance and durability. Suitable for new installations and component replacements in home air conditioning systems, it enables fast cooling while reducing energy consumption, serving as a reliable core component for cooling small to medium-sized home spaces.

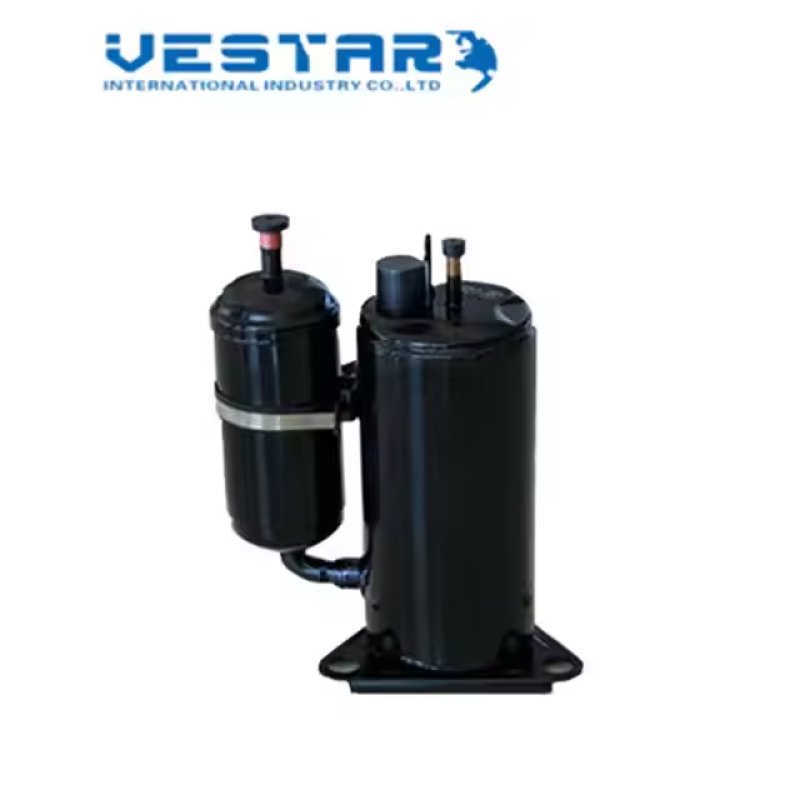

The K2-C310ELTE-H is a high-performance rotary compressor designed for 18,000 BTU (5.3 kW) cooling capacity applications. Operating at 220V, 50Hz, it is optimized for R410A refrigerant, making it ideal for residential and light commercial air conditioning systems.
| Parameter | Specification |
|---|---|
| Model | K2-C310ELTE-H |
| Cooling Capacity | 18,000 BTU/h (5.3 kW) |
| Refrigerant | R410A |
| Voltage/Frequency | 220V, 50Hz |
| Compressor Type | Rotary (Rolling Piston) |
| Lubricant Oil | POE (Polyolester) |
| Application | Split AC, Ductless Mini-Splits, Heat Pumps |
✔ High Efficiency & Reliability – Optimized for R410A’s high-pressure requirements, ensuring stable performance.
✔ Low Noise & Vibration – Precision-balanced rotor design for quiet operation (typically <50 dB).
✔ Robust Construction – Durable components to withstand high compression ratios and long operating cycles.
✔ Thermal & Overload Protection – Built-in safeguards to prevent motor burnout and overheating.
✔ Wide Operating Range – Suitable for hot climates with stable cooling output.
1.5-ton Residential Split Air Conditioners
Ductless Mini-Split Systems (Inverter & Fixed-Speed)
Light Commercial Packaged Units
Heat Pump Systems (Cooling & Heating Mode)
Energy-Efficient Motor Design – Lower power consumption compared to reciprocating compressors.
Compact & Lightweight – Saves installation space in AC units.
Long Service Life – Reduced wear due to fewer moving parts.
CE, ISO, and RoHS compliant
Meets international HVAC performance standards
This compressor is a cost-effective, high-performance solution for 18,000 BTU cooling systems, offering:
✅ Reliable operation under high-pressure R410A conditions
✅ Low maintenance requirements
✅ Compatibility with leading AC brands
18,000 BTU | R410A | 220V 50Hz**
The K2-C310ELTE-H represents the next generation of rotary compressor technology, specifically engineered to deliver 18,000 BTU (5.3kW) of reliable cooling capacity for premium air conditioning applications. Designed for optimal performance with R410A refrigerant, this compressor sets new standards in energy efficiency, durability, and quiet operation.
| Parameter | Specification |
|---|---|
| Model | K2-C310ELTE-H |
| Cooling Capacity | 18,000 BTU/h (5.3 kW) |
| Refrigerant | R410A |
| Electrical Rating | 220V, 50Hz |
| Compressor Type | Rotary (Rolling Piston) |
| Lubricant | Premium POE Oil |
| Sound Level | <50 dB(A) |
| Operating Range | -15°C to 55°C Ambient |
Specially reinforced components to withstand R410A's high operating pressures (up to 600 psi)
Optimized compression chamber design for maximum volumetric efficiency
Advanced sealing technology to minimize refrigerant leakage
High EER (Energy Efficiency Ratio) performance
Low starting current reduces power surges
Ideal for inverter and fixed-speed systems
Multi-stage noise reduction design:
Precision-balanced rotating assembly
Advanced muffler system
Vibration-absorbing mounts
Double-sealed bearings for extended lifespan
Thermal protection system prevents overheating
Corrosion-resistant coatings on critical components
10,000+ hour MTBF (Mean Time Between Failures)
Residential split-type air conditioners (1.5 ton capacity)
Ductless mini-split systems (wall-mounted and ceiling cassette)
Light commercial packaged units
Air-to-air heat pumps (cooling and heating modes)
30% more compact than equivalent reciprocating compressors
15% higher energy efficiency than previous-generation models
Factory-tested for consistent quality assurance
Global safety certifications including CE, UL, and RoHS compliance
This compressor delivers exceptional value through:
Lower total cost of ownership with reduced energy consumption
Simplified maintenance with fewer wearable parts
Proven performance in demanding climatic conditions
Seamless compatibility with major HVAC system designs
Technical documentation (performance curves, wiring diagrams)
Custom configuration options
OEM/ODM support for system integrators
The group company covers 300,000㎡ with the annual production capacity 6,000,000 units.There are more than 1600 staffs in the group company, including 280 skilled technicals and engineers.
