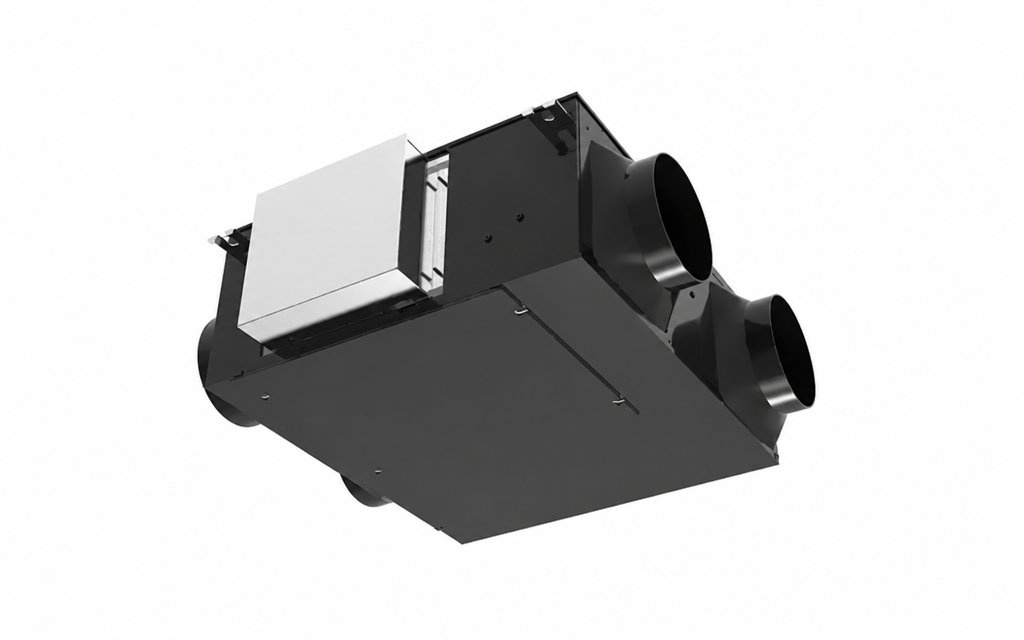

KTN Energy Recovery Ventilator (ERV): Dual-Channel Fresh Air with Medical-Grade Purification

KTN Energy Recovery Ventilator (ERV): Dual-Channel Fresh Air with Medical-Grade HEPA13 Purification

In sealed commercial and public spaces, "having fresh air" is only the starting point — the air must be clean, delivered safely, and easy to live with. The KTN ERV is designed around those three requirements, integrating purification, heat recovery and smart monitoring in one ceiling-mounted unit.

1. Product Highlights: Dual-Channel Independent Design Keeps Air Streams Apart: The unit uses independent supply and exhaust channels that stay separated by design, eliminating cross-contamination so odours, moisture and pollutants from the exhaust cannot leak into the fresh air delivered indoors. For spaces like hospital wards and school classrooms — crowded and air-sensitive — this matters more than a headline airflow figure.

2. Total Heat Exchange: Recovering Energy While Holding Humidity in Balance: The built-in total heat exchange core recovers energy from the outgoing stale air, easing the load on air conditioning and heating. It also exchanges moisture, so continuous ventilation does not dry the room out or make it clammy. Comfort stays stable across the seasons instead of trading stuffiness for dryness or electricity for fresh air.

3. Medical-Grade Purification: Three Filtration Stages: A pre-installed metal filter screen on the intake side is insect-proof and corrosion-resistant, washable and long-lasting. The core HEPA13 filter removes 99.97% of 0.3μm particles, intercepting fine particulates, smoke and microbial carriers. The activated carbon layer then adsorbs chemical pollutants such as formaldehyde, easing the odour load from finishes and furniture. Together the three stages make "air exchange" genuinely mean "better air".

4. Smart Monitoring: PM2.5, CO₂ and Filter Life at a Glance: IoT remote monitoring displays PM2.5, CO₂ concentrations and filter life in real time, so operating status no longer depends on guesswork. The system also adjusts its operating mode intelligently — ramping up ventilation when air quality drops and returning to low-consumption operation once targets are met — balancing air quality against energy use and giving filter replacement a clear basis instead of waiting for performance to visibly degrade.

5. Where It Fits: Spaces with Strict Air Requirements: Positioned as a commercial full heat exchange fresh air purification integrated machine, it suits hospitals, schools, laboratories and similar spaces with demanding air quality requirements. The ceiling-mounted body and duct connections make it practical to fit into existing ceiling voids while taking up little usable space.

KTN focuses on ventilation and purification equipment in the HVAC field, refining everything from filter media selection and structural design to intelligent control, to deliver air solutions that run stably and sustainably in commercial and public spaces.
