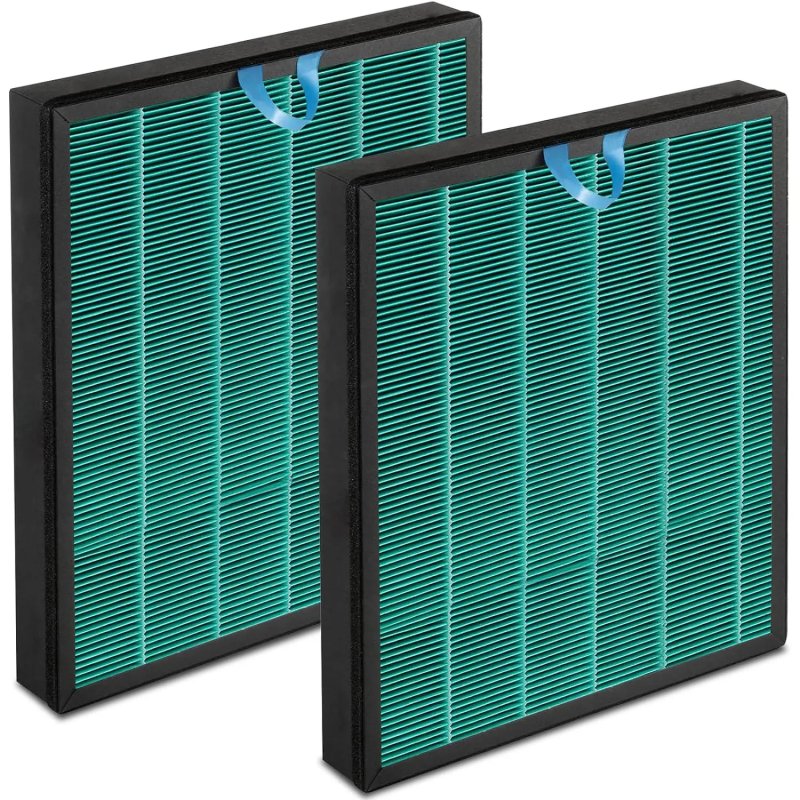

A brand-new composite air filter specifically designed for air conditioning systems, featuring H13-grade high-efficiency filter material (customizable efficiency available). The multi-layer structure integrates HEPA filtration and activated carbon adsorption functions, which can precisely capture PM2.5, dust, pollen, bacteria, and volatile organic compounds (VOCs), while effectively eliminating odors generated during air conditioning operation. This provides a clean and fresh air environment inside the vehicle, making it ideal for replacement and maintenance of air conditioning systems.

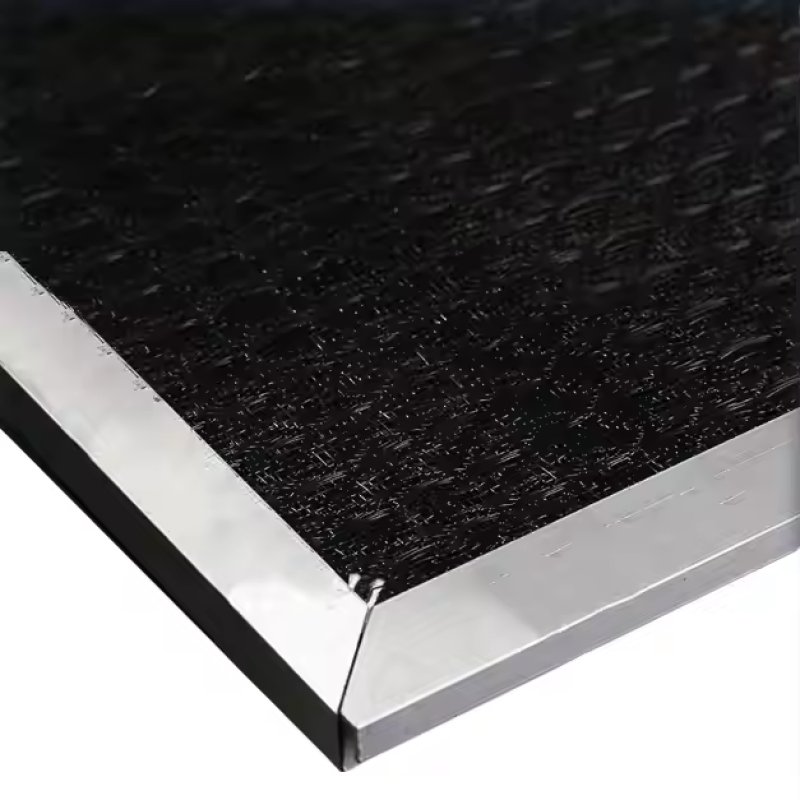

Reusable filters specially designed for central air conditioning and HVAC systems, made of high-strength nylon material or metal frame structure, effectively intercept large particle pollutants such as dust and pollen. The product features good air permeability and low resistance. It can be reused after washing, which not only reduces the usage cost but also minimizes the generation of waste.
System Compatibility
Standard sizes:
595x595mm (24"x24") nominal
Custom sizes available (up to 1200x600mm)
Velocity range:
Optimal: 1.5-3.0 m/s
Maximum: 5.0 m/s
Maintenance Protocol
Recommended cleaning:
Frequency: Quarterly (commercial) / Biannually (residential)
Method: Reverse flush with ≤40°C water
Drying: Ambient air drying (≥2hrs)
Service life: 5-7 years with proper maintenance
Material Composition
Primary filtration media:
High-density nylon monofilament mesh (120-150μm pore size)
Reinforced polypropylene frame with UV stabilization
Optional configurations:
Aluminum alloy frame (for industrial applications)
Antimicrobial coating (silver ion treatment)
Filtration Performance
Particle capture efficiency:
ASHRAE 52.2 MERV 6-8 rating
Initial arrestance: 85-92% for particles ≥3.0μm
